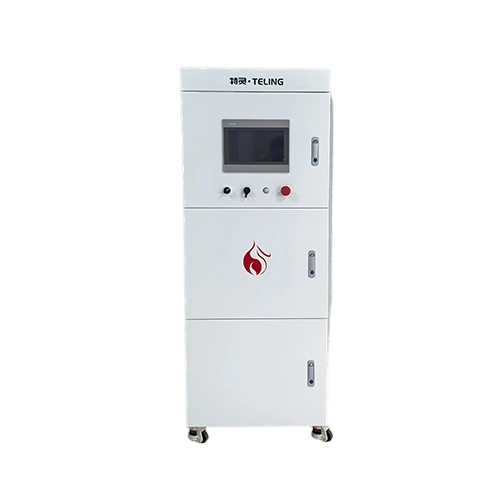

TL-DJC1000 Integrated Dry Mist Hydrogen Peroxide Sterilization System
Integrated dry mist hydrogen peroxide sterilization system, using non-flash evaporation vaporization technology, suitable for large-scale clean area sterilization
Working Principle
Using non-flash evaporation vaporization and non-high-pressure fan diffusion technology. With no less than 3kg compressed gas passing through multiple dual-fluid nozzles to create Venturi effect, forming hydrogen peroxide and other disinfectant solutions into dry mist state, diffusing throughout the entire space for complete sterilization.
|
Principle |
Dry Mist Venturi |
|
Sterilization Volume/m³ |
5000 |
|
Suitable Environment |
Aseptic Laboratories , Aseptic Production Areas, and Other Super Large Spaces Sterilization |
|
Basic Control Mode |
Wireless Remote Control+Touch Screen Delay and Schedule Control |
|
Housing Material |
304 Stainless Steel |
|
Spray Particle Size |
Average5 Micron |
|
Power |
1000-3000w |
|
Liquid Storage Capacity |
25-50 Liters |
|
Spray Volume |
32ml/min |
|
Disinfectant Used |
7.5% Hydrogen Peroxide Disinfectant or Sporicidal Agent |
|
Operating System |
PLC Control System |
|
Liquid Level Monitoring |
Optional |
|
Three-Level Password |
Available |
|
Data Recording |
Available |
|
Printer |
Available |
|
Catalytic Decomposition |
Not Available |
|
Hydrogen Peroxide Concentration Detection |
Optional |
|
Wireless Tablet Control |
Optional |
|
Multiple Device Networking |
Not Available |
|
Sterilization Effect |
log6 Killing Rate |
Application Environment
Product Features
- 1 Cost Reduction: Low concentration hydrogen peroxide sterilant has strong compatibility with color steel plates, rubber, equipment, etc., eliminating the need for special coated color steel plates or stainless steel construction in clean areas.
- 2 Risk Reduction: Main equipment unit installed in low-class areas, reducing contamination risks to core A/B areas during sterilant replacement, equipment maintenance, and other operations.
- 3 Easy Operation: No personnel required to place sterilization equipment and related auxiliary tools.
- 4 Comprehensive Functions: Main unit equipped with weighing, alarm, scheduled sterilization, and other functions, simultaneously configurable with concentration sensors for real-time data monitoring.
- 5 Control Performance: Can independently sterilize single, multiple rooms, or entire areas, independently adjust sterilization dosage and time for clean areas of different sizes.
- 6 Equipment Integration: Can be integrated with workshop control and air conditioning air supply systems.
- 7 Independent Piping: Not connected to air conditioning pipelines, sterilization pipelines independently laid out, independent nozzles configured for operation rooms, corridors, changing areas, buffer rooms, and other rooms within purified areas.
- 8 Result Recording: Uses PLC program control, usage data can be recorded and relevant sterilization data printed, meeting computer software validation requirements such as electronic signatures, audit trails, etc.
- 9 Customizable: Supports larger volumes, more clean room custom layout solutions.
- 10 Considerations: Layout work must be implemented before main workshop purification decoration completion or during workshop renovation.
Layout Requirements: Layout work must be implemented before main workshop purification decoration completion or during workshop renovation, allowing for rational pipeline system arrangement.
