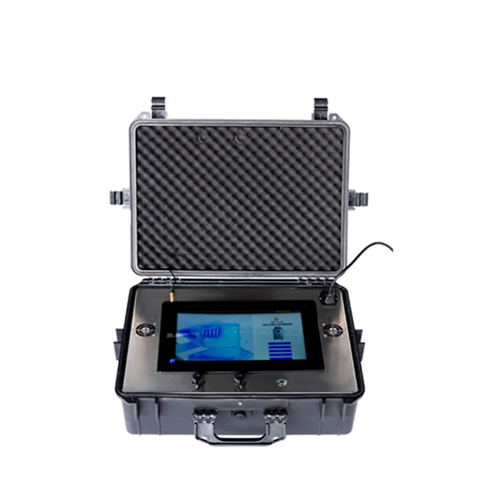

TL-LK08S (FDA version) integrated control host_Hefei Tailing Biotechnology Co., Ltd

Product Features

1 Signals can penetrate color steel plates, adapting to complex environment communication needs

2 Monitor all equipment operation status from the office, achieving remote centralized management

3 Control system certified by FDA and EU, meeting international standard requirements

4 Three-level user permission settings (administrator, technician, operator), ensuring operational security

5 Generator host and control terminal communicate through industrial-grade wireless control modules, no need for additional routers; wireless control modules use wireless redundancy technology to effectively ensure uninterrupted communication

6 Control system can simultaneously control no less than 8 generator hosts, achieving sterilization in complex spaces ≥4000m³; linked control can synchronously start all generators

7 Can connect to temperature, humidity, and hydrogen peroxide concentration triple probe; monitor various parameters in the room in real-time through software and feedback to the generator's PLC

8 Complies with 21CFR Part 11 electronic records and electronic signature certification requirements; automatically records sterilization process data (start time, sterilization volume, sterilization area temperature/humidity, hydrogen peroxide consumption) for traceability, ensuring data integrity

9 Complies with computer validation, equipped with audit trail function, meeting GMP computer permission management requirements

System Advantage: TL-LK08S (FDA Edition) Integrated Control Host is a high-level control system that complies with international certification standards, supports multi-device cluster management, enables sterilization control in large-scale complex spaces, equipped with complete data tracking and audit functions, meeting strict requirements of pharmaceutical, medical and other industries.

Technical Specifications

Control Capacity

Can simultaneously control no less than 8 generator hosts

Sterilization Space

Capable of managing sterilization in complex spaces ≥4000m³

Communication Technology

Industrial-grade wireless control modules with redundancy technology

Signal Penetration

Capable of penetrating color steel plates and other barriers

Sensor Integration

Supports temperature, humidity, and hydrogen peroxide concentration triple probe

User Management

Three-level user permission system (administrator, technician, operator)

Data Compliance

Complies with 21CFR Part 11 requirements for electronic records and signatures

Certifications

FDA and EU certified control system

Application Areas

Pharmaceutical Industry

Cleanroom sterilization management in pharmaceutical manufacturing facilities

Healthcare Facilities

Hospital sterilization areas and medical equipment disinfection control

Biotechnology

Laboratory and production area sterilization in biotech companies

Research Institutions

Advanced research laboratory sterilization control systems

Medical Device Manufacturing

Sterilization processes in medical device production facilities

Food Processing

Large-scale sterilization applications in food processing plants
